Best seller
DIAMOND VERIFICATION & SCREENING DEVICES

REVEAL Diamond Detector 2S

The world's most portable diamond screening and verification instrument. It detects 100% of CVD and HPHT lab-grown diamonds. It separates cubic zirconia and moissanite from natural diamonds. It works on loose stones and finished jewelry.

ASSURE 2.0 tested 0% false positives No subscriptions
$3,850
1-year global warranty, extendable in my.jtr
Auto-registers in your my.jtr account
Ships worldwide from NY & regional hubs
Complimentary over-the-air updates, for life

In the box

  • REVEAL Diamond Detector 2S instrument
  • Analysis trays
  • Power adapter and USB-C cable
  • myReveal app access
Independently verified

ASSURE 2.0: independent testing by the Natural Diamond Council

Submitted to the trade's independent benchmark for diamond verification instruments. Every lab-grown diamond was caught. Not a single natural diamond was misidentified.

View ASSURE 2.0 results
100%Lab-grown diamond detection
0%false positives
1.2 kgfits in carry-on baggage
$0subscriptions, updates or per-test fees
Loose and mounted stones

Screen finished jewelry without unsetting a stone

Rings, bracelets and watches go straight onto the stage. The REVEAL Diamond Detector 2S separates natural diamonds from lab-grown and imitation stones while they stay in their settings. No removal, no risk to the piece.

  • Loose stones of all sizes
  • Mounted goods: rings, bracelets, watches
  • Angled illumination for full-pavé coverage
Reports & QR codes

Reports your clients can hold and scan

Print or share a screening report for every appraisal, repair, insurance valuation or trade-in. Every report carries a QR code that opens the live analysis. You can also generate the QR code on its own and place it on your own corporate material: invoices, parcel papers, tags and more.

Versatile control

Use it your way! App controlled or standalone

Run the REVEAL Diamond Detector 2S from your computer's browser, from the myReveal app on a tablet or phone, or connect a monitor, keyboard and mouse and use it as a standalone workstation. No other device required. Save any analysis to your account whenever you want a record.

  • Computer: works right in the browser
  • Tablet & phone: myReveal app
  • Standalone: monitor + keyboard + mouse, computer-like experience
  • Review results remotely while a teammate operates the instrument
The lab that travels with you

Laboratory-grade certainty, no strings attached

No subscriptions. Ever.

All updates and new features are complimentary for the life of the instrument. No hidden fees, no per-test charges.

Airline-friendly by design

1.2 kg, no internal battery. Take it to trade shows and client visits in your carry-on.

Runs on a power bank

No outlet? Any PD-supported power bank keeps you screening, in the store or on the go.

Reference-stone confidence

Compare results against up-to-date reference samples and remove uncertainty from borderline calls.

The my.jtr portal

Every instrument comes with a portal behind it

Your REVEAL Diamond Detector 2S auto-registers in my.jtr the moment you activate it. One account for your whole organization, across every device you own. No other gemological equipment maker offers anything like it.

  • Device settings: privacy, warranty, user authentication
  • Team members, seats and roles
  • Every saved analysis, in one place
  • Generate analysis reports, QR codes and sharable links
  • Plans, billing & invoices
  • Integration to POS systems
Open my.jtr
my.jtr.org/equipment

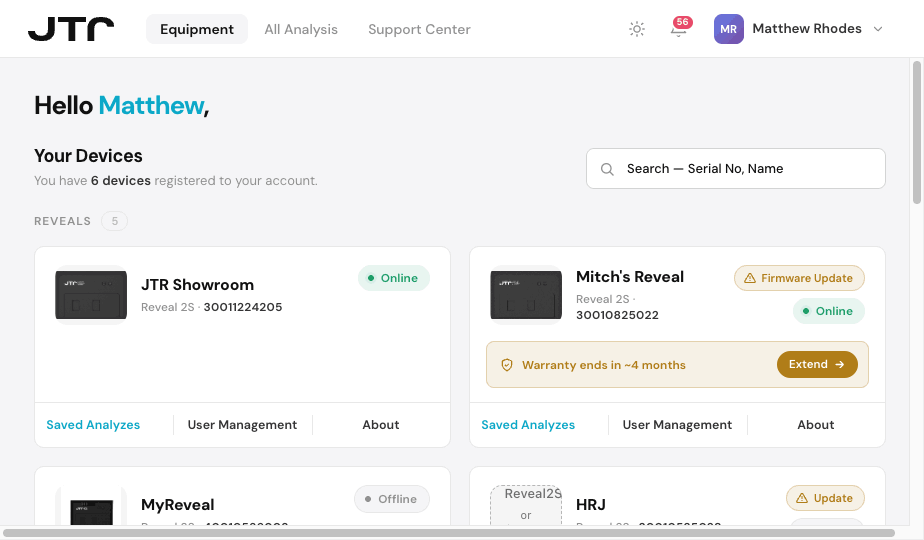

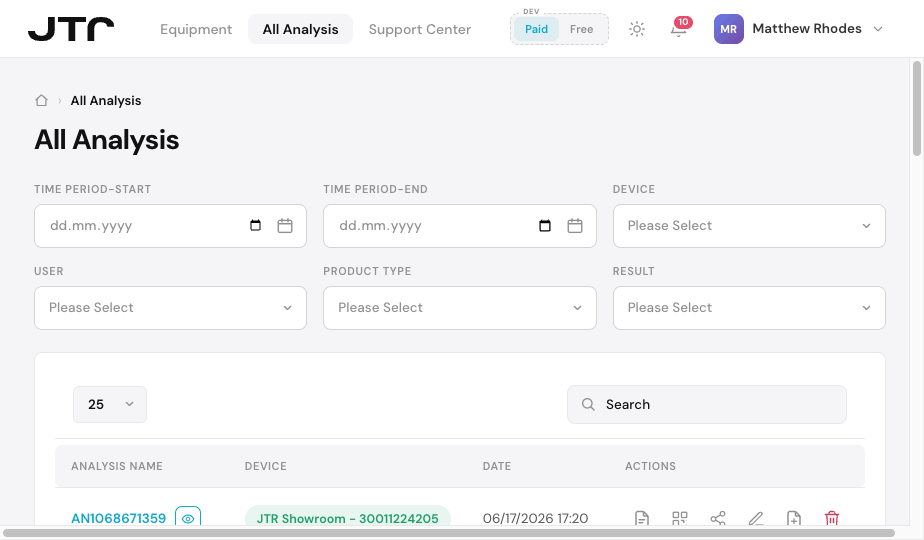

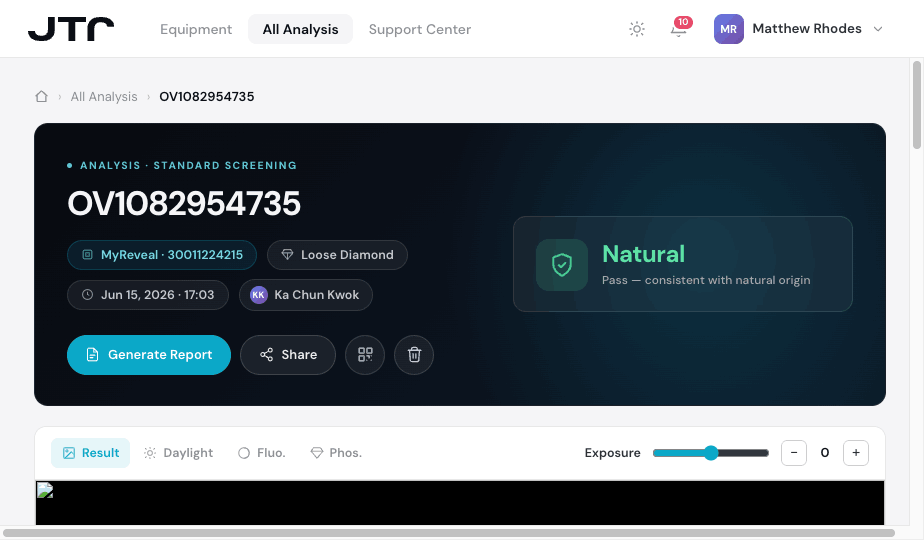

my.jtr — your registered REVEAL devices my.jtr — all analyses, filterable and searchable my.jtr — analysis detail with result and report actions
Customer reviews

What the trade says

Verified purchases
Trusted by leading names in the trade
Stuller Midas Chain Blue Nile M. Schamroth & Sons
Videos

See the REVEAL Diamond Detector 2S in action

New features, walkthroughs and customer stories. Updated as the product evolves.

View the full playlist on YouTube
Specifications

Technical details

Analysis

Verified performance
ASSURE 2.0: 100% lab-grown detection, 0% false positives
Weight range
0.001 ct and up
Color range
D - L*
Stone shape
All
Multiple stones at once
Yes
Automated results
Yes**
Training required
Yes
Lab-grown diamonds
HPHT, CVD & Treated CVD
Diamond simulants
Cubic zirconia and moissanite

Technical specifications

Dimensions
Weight
Analysis area
Construction material
Aluminum and biodegradable composite plastic
Power input
USB Type-C PD
Works with external battery
Yes****
Ports
1× HDMI, 2× USB 2.0
Warranty
1 year global, extendable in my.jtr

Capabilities

Internet connection
Yes / Wi-Fi and USB-Ethernet dongle support
Works offline
Yes
Versatile control
Operate via the myReveal mobile app, or connect a monitor, keyboard and mouse for a computer-like experience on a Full HD screen
Over-the-air updates
Yes***
User restrictions
Yes / Complimentary one user per device; additional user seats can be obtained on a subscription basis
Self diagnostics
Yes / checks multiple sensors automatically and reports to the JTR Service Center
Saving analyses
Yes / Complimentary 50 saved analysis space on my.jtr cloud; additional storage can be upgraded on a subscription basis

* Failsafe across all colors, although natural brown and fancy colors will give a higher referral rate.

** Automated results for HPHT lab-grown diamonds. Natural, CVD and simulant identification is based on comparison to reference images.

*** Complimentary in the first year of purchase. Requires an extended warranty purchase for continued access after the first year.

**** Works with external batteries with an output of minimum 45 W PD.
