REVEAL 2S
The world’s most portable diamond screening & verification instrument. Detects 100% of lab-grown CVD and HPHT diamonds — plus simulants like CZ and moissanite — on loose stones and finished jewellery.
In the box
- REVEAL 2S instrument
- Analysis Trays
- Power supply & USB-C cable
- myReveal app access
ASSURE 2.0 tested by the Natural Diamond Council
REVEAL 2S was submitted to the trade’s independent benchmark for diamond verification instruments. The result: every lab-grown diamond caught, and not a single natural diamond misidentified.
View ASSURE 2.0 results
Screen finished jewellery without unsetting a stone
Rings, bracelets and watches go straight onto the stage. REVEAL 2S separates natural diamonds from lab-grown and imitation stones in their settings — no removal, no risk to the piece.
- Loose stones of all sizes
- Mounted goods: rings, bracelets, watches
- Angled illumination for full-pavé coverage
Reports your clients can hold — and scan
Print or share a screening report for every appraisal, repair, insurance valuation or trade-in — each one carries a QR code that opens the live analysis. You can also generate the QR code on its own, ready to place on your own corporate material: invoices, parcel papers, tags and more.
Use it your way! App controlled or standalone
Run REVEAL 2S from your computer’s browser, or from a tablet or phone with the myReveal app — or hook up a monitor, keyboard and mouse and use it as a standalone workstation, no other device required. Save any analysis to your account when you need a record.
- Computer: works right in the browser
- Tablet & phone: myReveal app
- Standalone: monitor + keyboard + mouse, PC-like experience
- Review results remotely while a teammate operates
Laboratory-grade certainty, no strings attached
No subscriptions. Ever.
All updates and new features are free for the life of the instrument. No hidden fees, no per-test charges.
Airline-friendly by design
1.2 kg, no internal battery. Built for trade shows, office visits and carry-on travel.
Runs on a power bank
No outlet? Any PD-supported power bank keeps you screening — in the store or on the go.
Reference-stone confidence
Compare results against up-to-date reference samples and eliminate uncertainty from borderline calls.

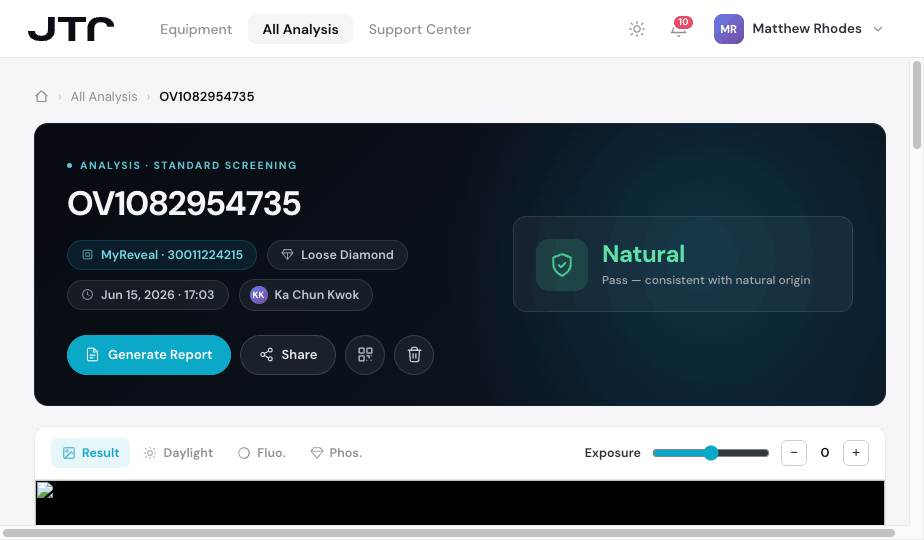

Every instrument comes with a portal behind it

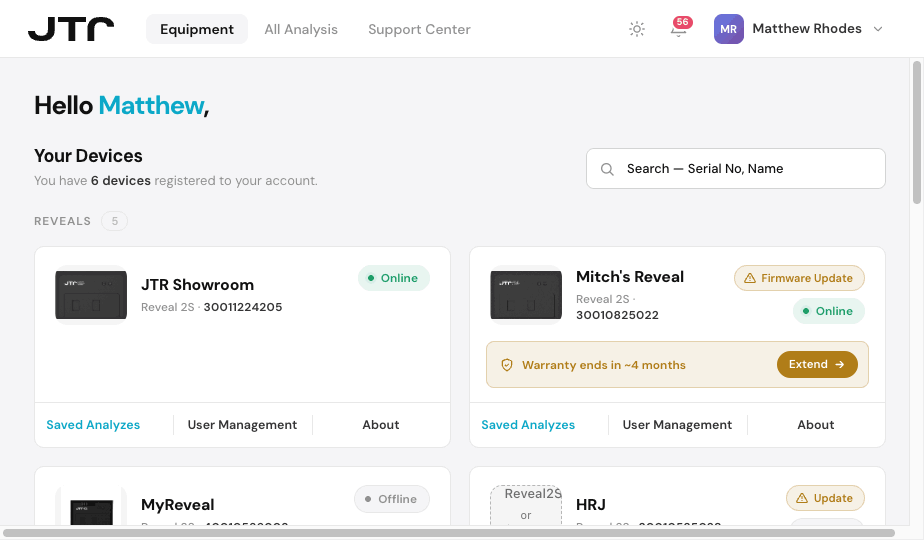

Your REVEAL 2S auto-registers in my.jtr the moment you activate it — one account for your whole organisation, across every device you own. No other gemological equipment maker offers anything like it.
- Device settings: privacy, warranty, user authentication
- Team members, seats and roles

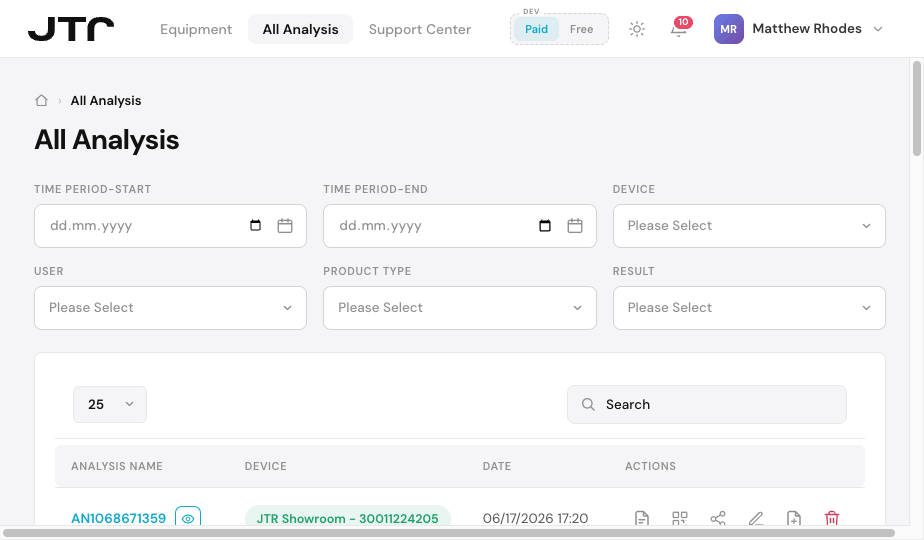

- Every saved analysis, in one place
- Generate analysis reports, QR codes and sharable links
- Plans, billing & invoices
- Integration to POS systems
What the trade says
“Intuitive, highly portable and reliably accurate. The speed and consistency of results make it a standout at a very reasonable price point. I’m especially impressed by JTR’s modular approach.”
“I have used almost every verification device out there and this one is truly my favorite. Very easy to use and cost effective — I use it daily for both loose diamonds and finished goods.”
“Has been great so far! Easy to set up and use. Price is good. The fact that you can update your device without being charged is a plus.”
See the REVEAL 2S in action
New features, walkthroughs and customer stories — updated as the product evolves.
Technical details
Analysis
- Verified performance
- ASSURE 2.0 — 100% lab-grown detection, 0% false positives
- Weight range
- 0.001 ct and up
- Colour range
- D to L*
- Stone shape
- All
- Multiple stones at once
- Yes
- Automated results
- Yes**
- Training required
- Yes
- Lab-grown diamonds
- HPHT , CVD & Treated CVD
- Diamond simulants
- Cubic zirconia and moissanite
Technical specifications
- Dimensions
- Weight
- Analysis area
- Construction material
- Aluminium and biodegradable composite plastic
- Power input
- USB Type-C PD
- Works with external battery
- Yes****
- Ports
- 1× HDMI, 2× USB 2.0
- Warranty
- 1 year global, extendable in my.jtr
Capabilities
- Internet connection
- Yes / Wi-Fi and supports usb - ethernet dongles
- Works offline
- Yes
- Versatile control
- Operate via the myReveal mobile app, or connect a mouse and keyboard to a Full HD monitor for a PC-like experience
- OTA updates
- Yes***
- User restrictions
- Yes / Complimentay one user per device ; additional user seats can be obtained on a subscription basis
- Self diagnostics
- Yes / checks multiple sensors automatically and reports to the JTR Service Center
- Saving analyses
- Yes / Complimentary 50 saved analysis space on my.jtr cloud ; additional storage can be upgraded on a subscription basis
* Failsafe across all colours, although natural brown and fancy colours will give a higher referral rate.
** Automated results for HPHT lab-grown diamonds. Natural, CVD lab-grown and simulant identification based on comparison to reference images.
*** Free in the first year of purchase. Requires extended warranty purchase for continued access after the first year.
**** Works with external batteries with an output of minimum 45 W PD.
Expand your REVEAL 2S
Before you buy
No. There are no recurring costs of any kind. Software updates and new features arrive free over the air, and analyses through the myReveal app are unlimited.
Yes. Rings, bracelets and watches are screened directly in their settings — no unsetting required. Loose stones are supported from 1.00 mm.
ASSURE is the Natural Diamond Council’s independent testing program for diamond verification instruments. REVEAL 2S recorded a 100% detection rate for CVD and HPHT lab-grown diamonds and a 0% false-positive rate on natural diamonds.
Over USB-C PD — from the included mains adapter or any PD-supported power bank. There is no internal battery, which is what makes the instrument airline-friendly.
Your instrument ships from New York or a regional hub and auto-registers in your my.jtr account once you activate it, where you manage the 1-year global warranty (extendable), devices and team access.
Put certainty on the counter
No subscriptions, no uncertainty — laboratory-grade screening wherever you work.
